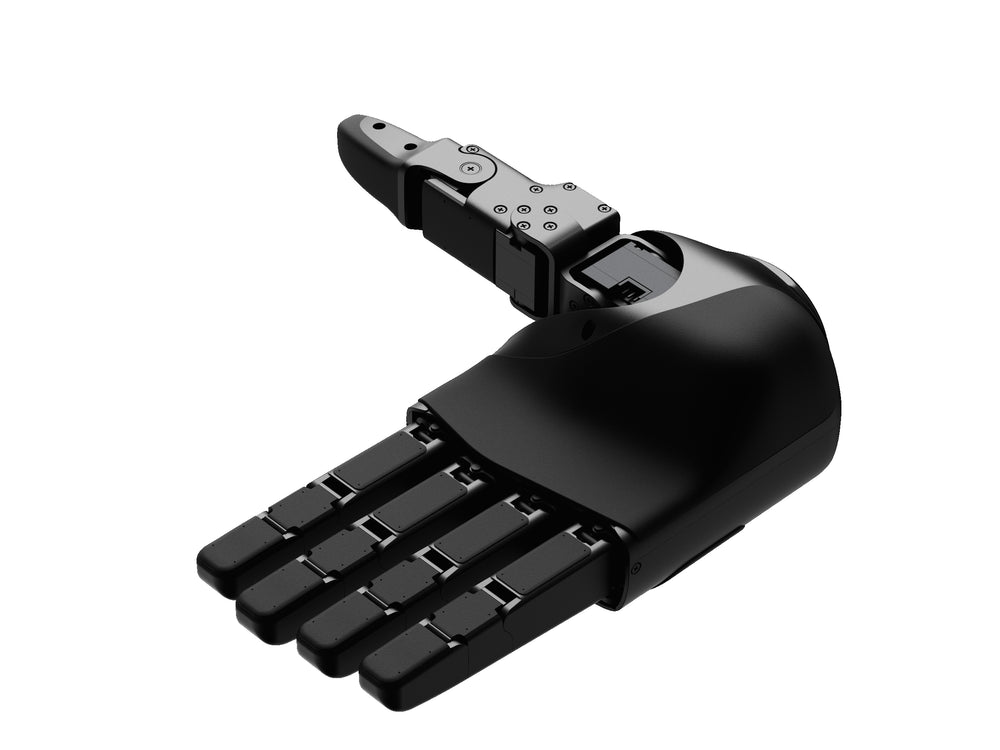

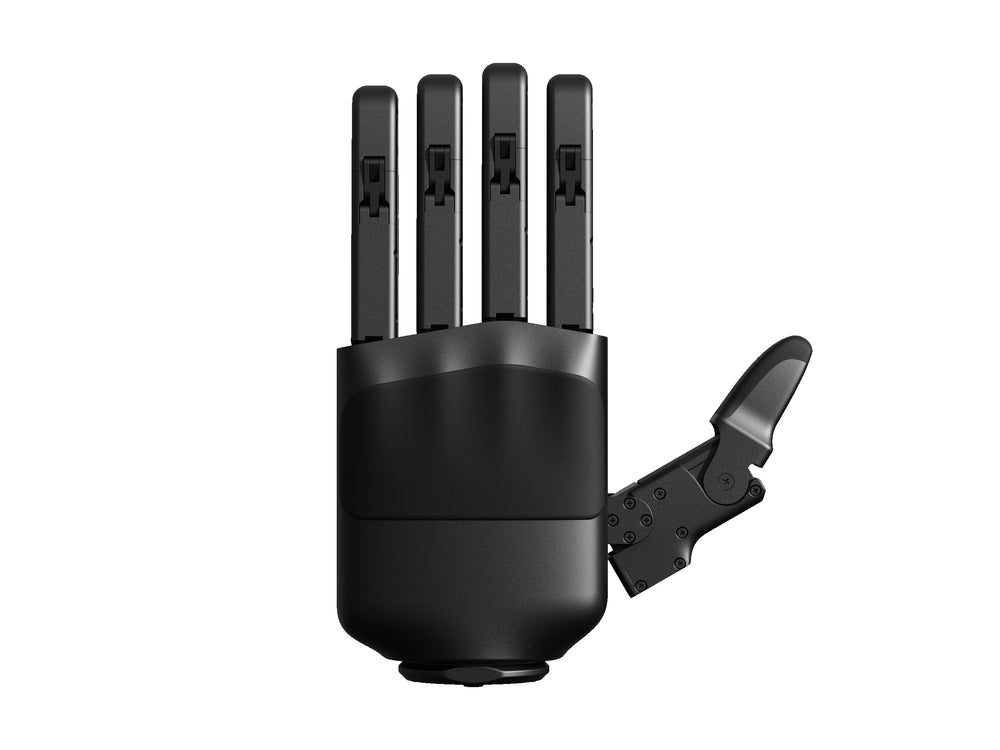

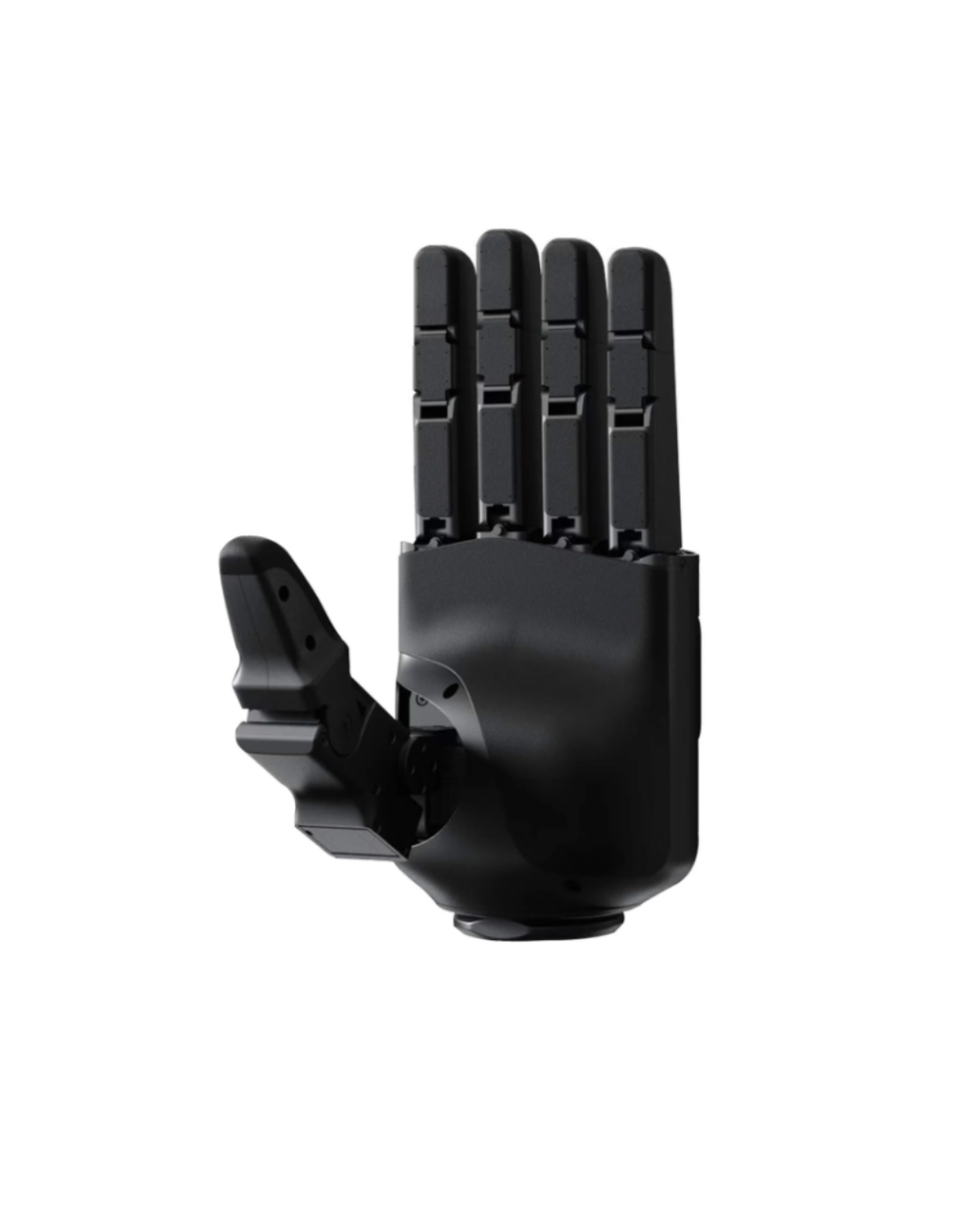

Unitree H2-Specific Dex5-1 Five-Finger Dexterous Hand
$25,000.00Introducing this robot, a versatile humanoid engineered to excel in light industrial tasks, service applications, and educational settings.
Product Description
Here is the information for the H2-Specific Dex5-1 Five-Finger Dexterous Hand based on the provided document:
Overview & Description
Model: Dex5-1 (H2-Specific Dex5-1 Five-Finger dexterous hand).
Notes: Self-developed. Intended solely as repair parts; cannot be ordered separately, only place order together with H2. The price is for a single wrist. Typically, one G1 unit is paired with two wrists.
Transmission Mechanism & Architecture
12 proprietary micro force-controlled composite transmission joints (enabling tactile-free robot body perception).
4 micro force-controlled joint gear transmissions.
Joint Angles & Degrees of Freedom
Thumb Joint:
Thumb Joint 0: -33.5° to 39°
Thumb Joint 1: 0° to 100°
Thumb Joint 2: 0° to 110°
Thumb Joint 3: 0° to 92°
Four Fingers Joints:
Finger Joint 0: -22° to 22°
Finger Joint 1: 0° to 90°
Finger Joint 2: 0° to 95°
Finger Joint 3: 0°–81° (coupled with Finger Joint 2)
Lateral Movement: Four-finger Lateral Swing: $\pm 22^\circ$
Specifications & Performance
Minimum Grasping Diameter: 10mm
Fingertip Repeatability: $\pm 1\text{mm}$
Fingertip Force: 10N
Operating Voltage: 24V~60V
Quiescent Current: 58V @ 0.2A
Maximum Current: 58V @ 3A
Communication Interface: USB 2.0
Operating Temperature Range: -20°C ~ 60°C
Load Capacity:
Ambient Temperature, Palm Down, Gripping 5cm Circular Rigid Object: Maximum Weight 3.5kg
Ambient Temperature, Palm Left, Gripping 5cm Circular Rigid Object [2]: Maximum Weight 4.5kg
Communication Rate: 1000Hz
Total Packet Byte Count:
Transmitter: 1234 bytes
Receiver: 1270 bytes
Sensor Feedback: Joint Mode, Joint Position, Joint Velocity, Joint Torque, Joint Temperature, Voltage/Current, IMU Data
Buy it with:
Key Features
Speak to an expert

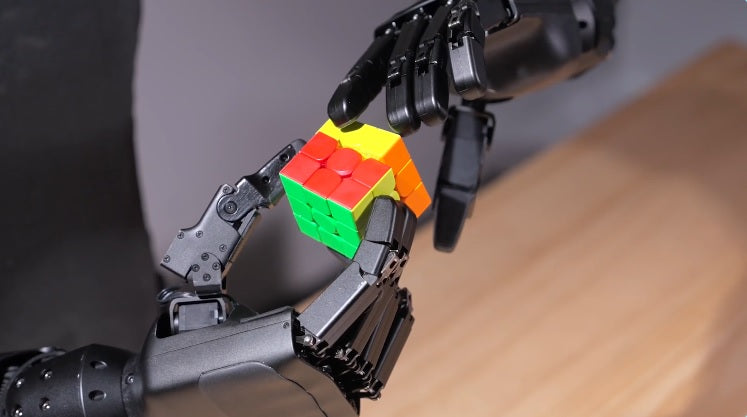

High-Precision Dexterity for Complex Tasks

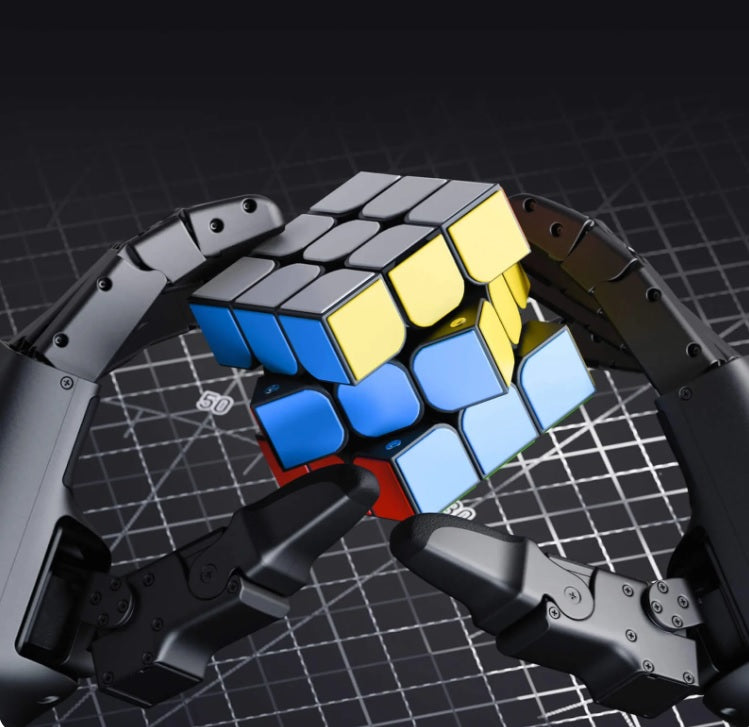

With 20 degrees of freedom (16 active, 4 passive), the Dex5 delivers lifelike articulation across all five fingers—demonstrated in fine-motor tasks like flipping pages, solving Rubik’s Cubes, and precision object handling. Optional tactile feedback sensors enable responsive adjustments in real time.

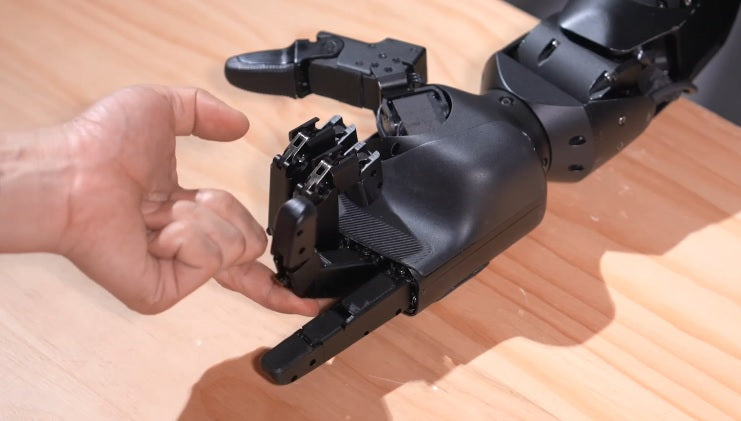

Full-Range Finger Articulation & Control
Each Dex5 hand uses 12 micro force-controlled joints to support independent finger motion and fluid grasping. ±1mm repeatability and 10N fingertip strength showcase its capability for advanced manipulation in research, robotics, and AI training environments.
