Unitree B2 Industrial Quadruped Robotic Dog
Unitree B2 Industrial Quadruped Robotic Dog
Introducing the Unitree B2, a cutting-edge industrial-grade quadruped robot engineered for high-speed mobility, exceptional load capacity, and advanced terrain adaptability. Designed to excel in complex environments, the B2 is ideal for applications such as industrial automation, power inspections, emergency rescue operations, and educational research.
$84,999.00
Key features:
Payment methods
Delivery
Product description
Introducing the Unitree B2, a cutting-edge industrial-grade quadruped robot engineered for high-speed mobility, exceptional load capacity, and advanced terrain adaptability. Designed to excel in complex environments, the B2 is ideal for applications such as industrial automation, power inspections, emergency rescue operations, and educational research. Key Features:
  • High-Speed Performance: Achieves speeds exceeding 6 m/s, positioning it among the fastest industrial quadruped robots available.
  • Robust Load Capacity: Supports a maximum standing load of 120 kg and a continuous walking load over 40 kg, enabling efficient transport of equipment and materials.
  • Extended Endurance: Capable of continuous operation for over 5 hours without load, and maintaining stable performance even when carrying a 20 kg load, ensuring reliability during prolonged missions.
  • Advanced Joint Performance: Equipped with self-developed motors delivering a peak torque of 360 N·m, enhancing flexibility and stability for complex industrial tasks.
  • All-Terrain Adaptability: Demonstrates superior obstacle-crossing ability, effortlessly navigating obstacles up to 40 cm in height, and maintaining stability on slippery or uneven surfaces.
  • Comprehensive Sensing Capabilities: Compatible with a variety of sensors, including 3D LiDAR, depth cameras, and optical cameras, providing enhanced environmental perception for safe and efficient task execution.
Technical Specifications:
  • Dimensions:
    • Standing: Approximately 1098 mm x 550 mm x 758 mm
    • Lying Prone: Approximately 950 mm x 550 mm x 450 mm
  • Weight: Approximately 75 kg (including battery)
  • Battery Capacity: Greater than 2 kWh, voltage 58V
  • Ingress Protection: Rated at IP67, ensuring high resistance to dust and water ingress
  • Operating Temperature Range: From -20°C to 55°C
  • Control and Perception Options:
    • Standard: Intel Core i5 (Platform Function), Intel Core i7 (User Development)
    • Optional: Intel Core i7 and Jetson Orin NX (up to 3 devices)
The Unitree B2 sets a new standard in robotic mobility and functionality, making it an indispensable asset for professionals and researchers seeking a reliable and adaptable solution for complex tasks.
product
Unitree B2 Industrial Quadruped Robotic Dog $84,999.00
Add to cart
TVC Robotics
Key capabilities
> 6m/s
Top speed
120kg
Max Standing Payload
>1.6m
Max. Jump Distance
solutions
Practical solutions
Security
Request consultation
Specifications
Computing

Main CPU:
Intel Core i5 (Platform Function), Intel Core i7 (User Development)

High Computing Power Modules (Optional Configuration):
Intel Core i7 and Jetson Orin NX
(Maximum up to 3 devices)

Secondary Development Support:
Supported

Hardware

Chassis & Frame

  • Dimensions L x W x H (Standing): 1098mm x 450mm x 645mm

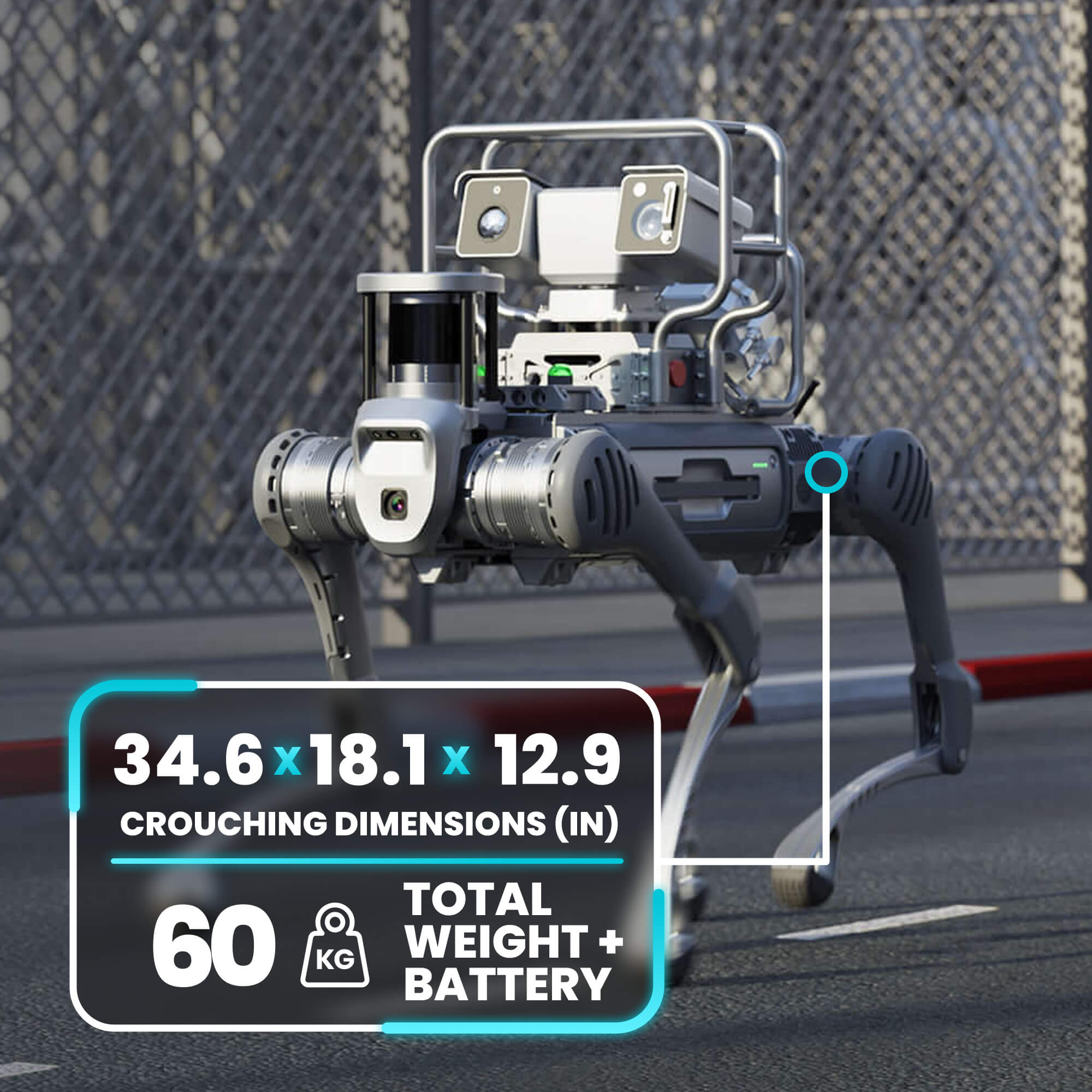

  • Dimensions (Crouching): 880mm x 460mm x 330mm
  • Weight (with Battery): 60 kg
  • Materials: Aluminum alloy and high-strength engineering plastic

Battery

  • Battery Capacity: 45Ah(2250Wh)

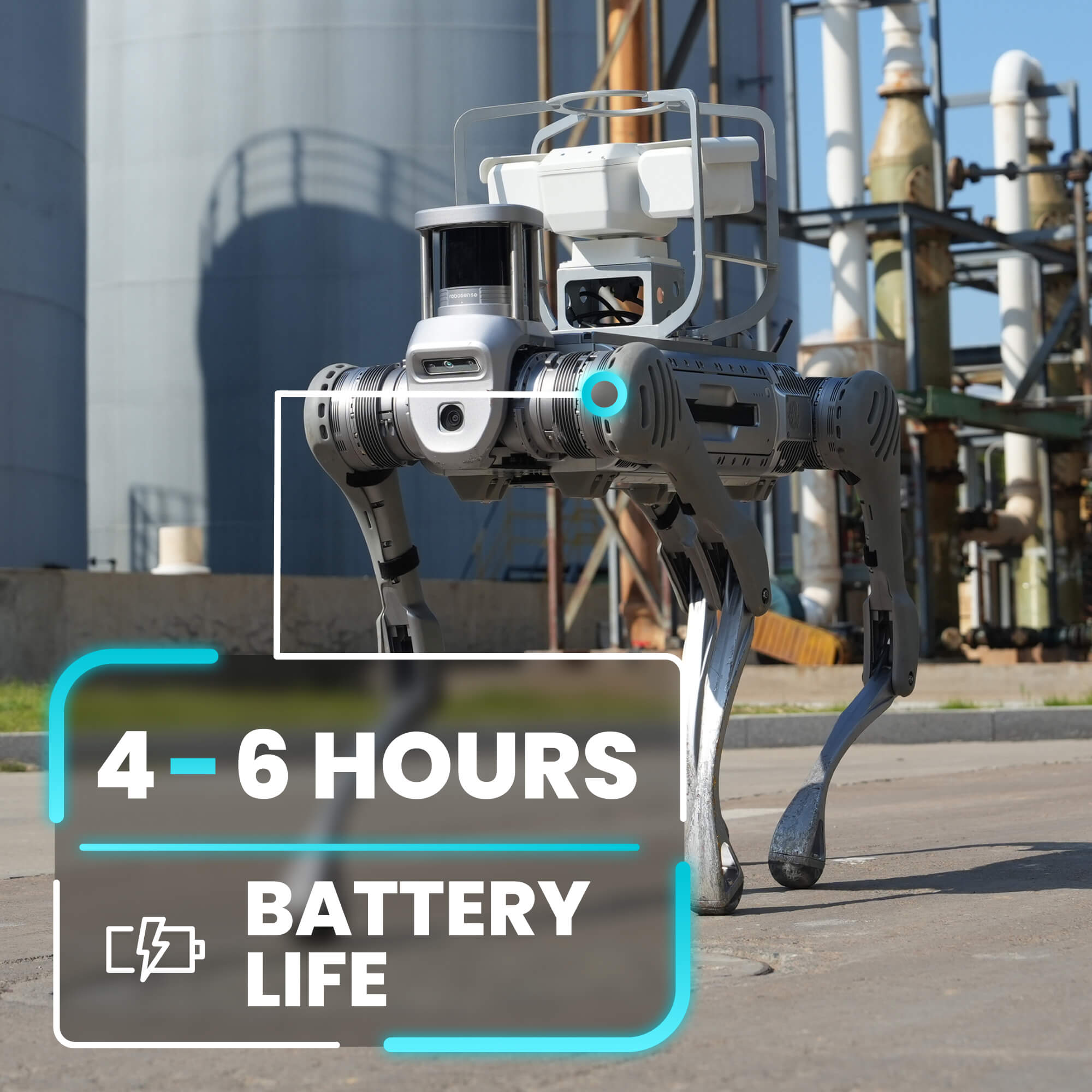

  • Battery Life: 4-6 hrs
  • Voltage Range: 58V
Performance

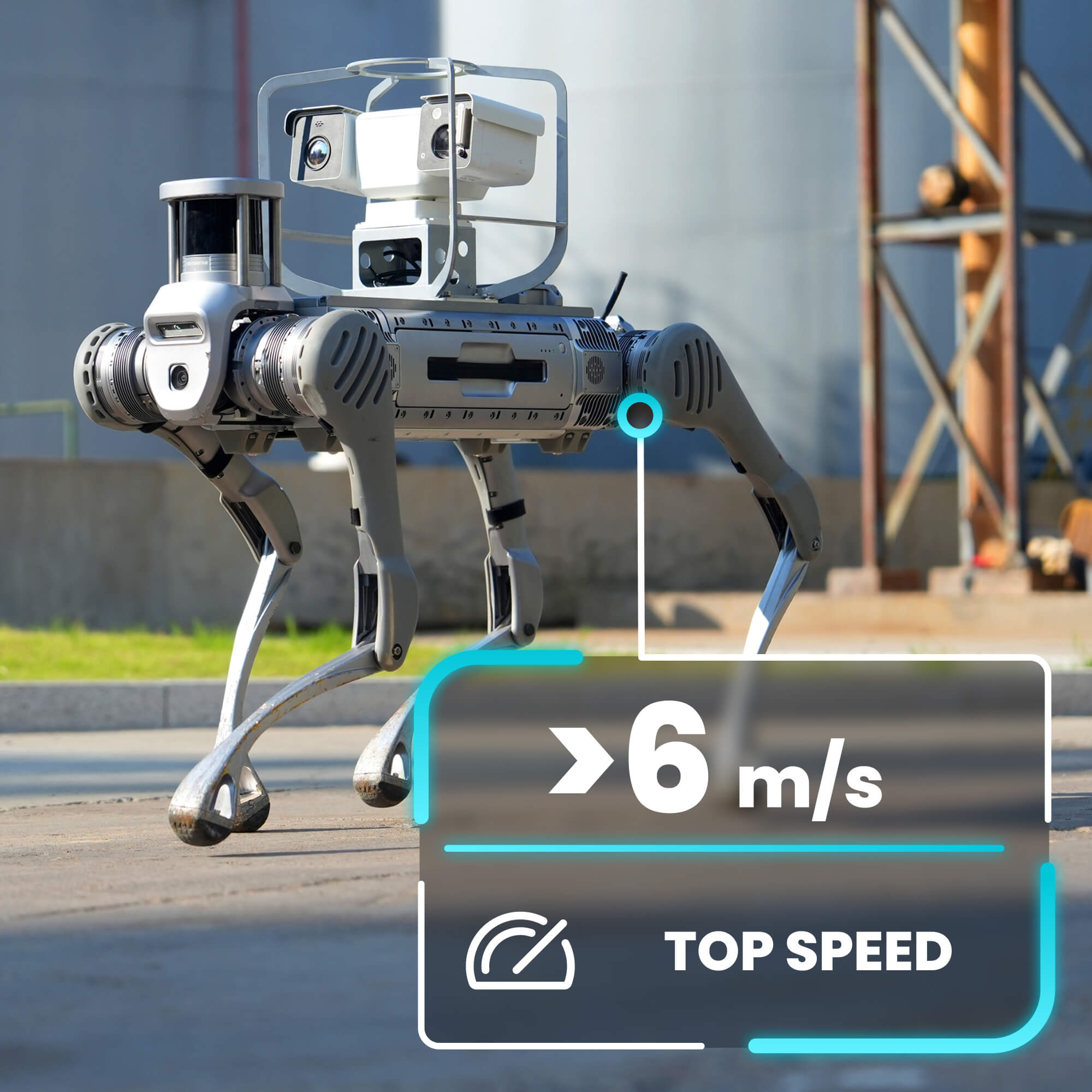

Top Speed:
> 6 m/s

Max Joint Torque:
360 N·m

Max Payload (Standing):
120 kg

Max Payload (Walking):
>40 kg

Endurance Ability:
15km (with 20kg load)
20km (without load)

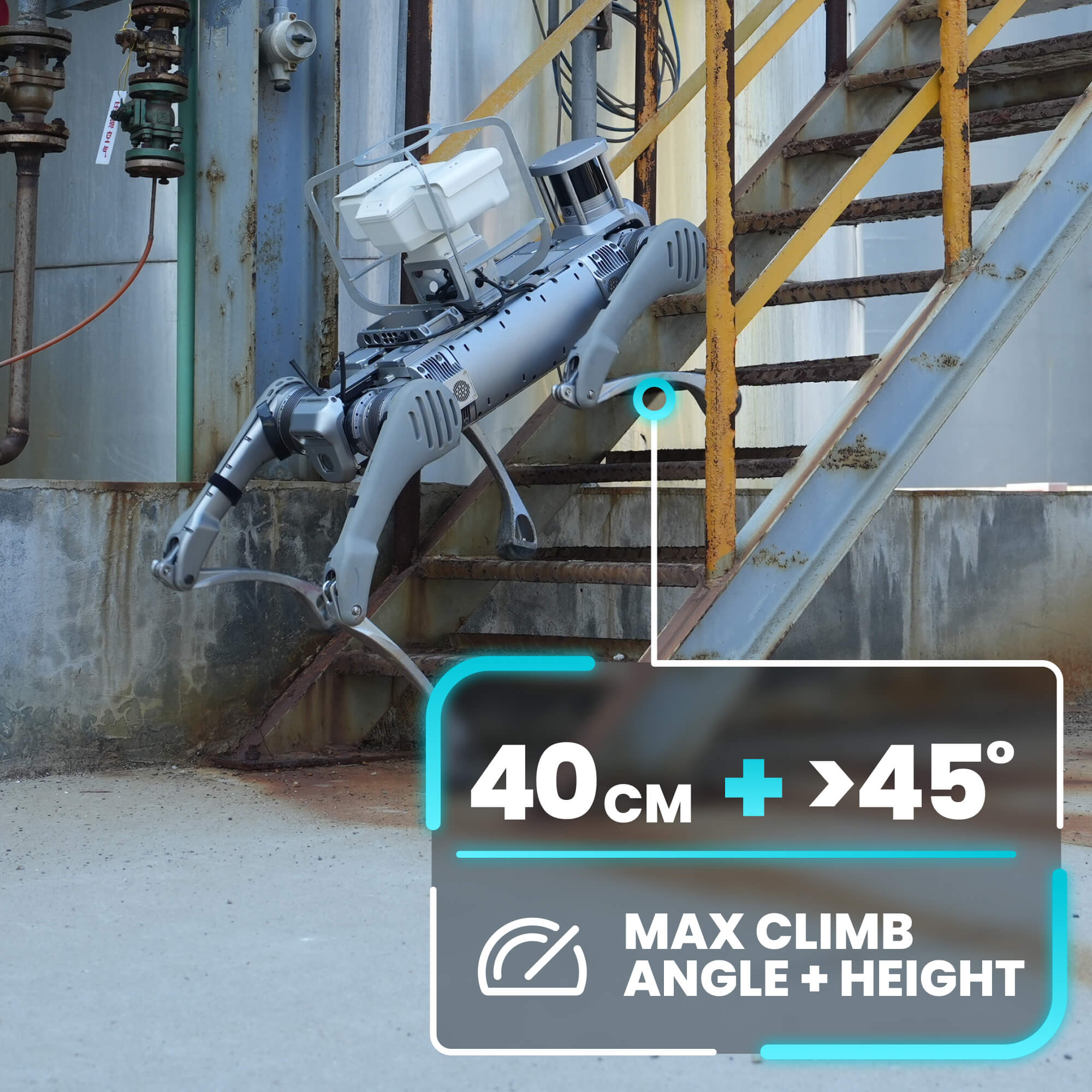

Max Climb Height:
40cm in forward direction

Max Climb Angle:
>45°

Continuous Stair Climbing Height:
20~25cm

Max Jump Distance:
> 1.6m

Ditch Jumping Width:
0.5~1.2m

Operating Temperature:
-20℃ ~ 55℃ / -4°F ~ 131°F

Cameras & Sensors

3D LiDAR:
Not Included

Front Cameras:
Depth (2x) + High Resolution Optical (2x)

Features
  • OTA Upgrade System: Yes
  • Manual Controller: Yes
  • Intelligent Detection and Avoidance: Yes
  • Water Resistance: IP67
Accessories Compatibility
  • Z1 Arm: Yes
  • Wireless Self Charging Pad: Yes

Reach out for more info on specific configurations

What’s included
B2 Quadruped
Remote Control
B2 Battery (1x)
